XGBoost可解释性(by R)

发表于 更新于 分类于 Valine：
通过R实现XGBoost对数据进行回归分析并进行模型可解释性出图

构建XGBoost回归模型，通过多种水质参数预测溶解氧

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
#导入所需的工具包
library(xgboost)
library(caret)
library(pROC)
library(hydroGOF)

#导入数据
origindata <- read.table('E:\\data\\data.txt',encoding="UTF-8",header = T,sep = "\t")
#删除第1列
origindata <-origindata[,-1]
#删除NA行
origindata <-na.omit(origindata)
#最后一行是标签，名字改为target
colnames(origindata)[length(origindata)]<-"target"

#设置随机种子，使结果能够重现，同时随机划分训练集测试集（8:2）
set.seed(1234)
choose<-createDataPartition(y=origindata$target,p=0.8,list=F)
traindata<-origindata[choose,]
testdata<-origindata[-choose,]

#构建模型并预测，最后一列作为y，其他列作为x
data_trainx<-as.matrix(traindata[,1:length(origindata)-1])
data_trainy<-as.numeric(as.character(traindata$target))
data_testx<-as.matrix(testdata[,1:length(origindata)-1])
data_testy<-as.numeric(as.character(testdata$target))

#构建矩阵作为XGBoost的输入
dtrain <- xgb.DMatrix(data = data_trainx, label = data_trainy)
dtest <- xgb.DMatrix(data = data_testx, label = data_testy)

watchlist <- list(train = dtrain, test = dtest)


DO_xg <- xgb.train(
  data = dtrain,
  eta = 0.3,
  gamma = 0.001,
  max_depth = 2,
  subsample = 0.7,
  colsample_bytree = 0.4,
  objective = "reg:squarederror",
  nrounds = 1000,
  watchlist = watchlist,
  verbose = 1,
  print_every_n = 100,
  early_stopping_rounds = 200
)

#训练集与测试集预测
trainpred<-predict(DO_xg,newdata = dtrain)
testpred<-predict(DO_xg,newdata = dtest)

#打印误差
#训练集精度指标
trainR2<-1-sum((traindata$target-trainpred)^2)/sum((traindata$target-mean(traindata$target))^2)
trainRMSE<-sqrt(mean((traindata$target-trainpred)^2))
trainMAE<-mean(abs(traindata$target-trainpred))
trainRSE<-sqrt(sum((traindata$target-trainpred)^2)) / sqrt(sum((traindata$target-mean(traindata$target))^2))
trainMSE<-mean((traindata$target-trainpred)^2)
trainMAPE<-mean(abs((traindata$target-trainpred) / traindata$target))
trainMSPE<-mean(((traindata$target-trainpred) / traindata$target)^2)
cat("训练集R2:",trainR2,",RMSE:",trainRMSE,",MAE:",trainMAE,",RSE:",trainRSE,",MSE:",trainMSE,",MAPE:",trainMAPE,",MSPE:",trainMSPE)
#测试集集精度指标
testR2<-1-sum((testdata$target-testpred)^2)/sum((testdata$target-mean(testdata$target))^2)
testRMSE<-sqrt(mean((testdata$target-testpred)^2))
testMAE<-mean(abs(testdata$target-testpred))
testRSE<-sqrt(sum((testdata$target-testpred)^2)) / sqrt(sum((testdata$target-mean(testdata$target))^2))
testMSE<-mean((testdata$target-testpred)^2)
testMAPE<-mean(abs((testdata$target-testpred) / testdata$target))
testMSPE<-mean(((testdata$target-testpred) / testdata$target)^2)
cat("测试集R2:",testR2,",RMSE:",testRMSE,",MAE:",testMAE,",RSE:",testRSE,",MSE:",testMSE,",MAPE:",testMAPE,",MSPE:",testMSPE)
cat("target平均:",mean(testdata$target),"target平均误差范围:±",mean(abs(testdata$target-testpred)),"target最大误差:±",max((testdata$target-testpred)))

#画图
test_group <- rep('Test Samples',times=nrow(dtest))
testPlot <- data.frame(testdata$target,testpred,test_group)
colnames(testPlot)<-c('DO',
                      'Prediction_DO',
                      'Group')
train_group <- rep('Train Samples',times=nrow(dtrain))
trainPlot <- data.frame(traindata$target,trainpred,train_group)
colnames(trainPlot)<-c('DO',
                       'Prediction_DO',
                       'Group')
Plotset <- rbind(testPlot,trainPlot)
library(ggplot2)
library(ggThemeAssist)
Plot2 <- ggplot(data = Plotset)+
  geom_point(data = Plotset[1:nrow(testPlot),],
             aes(x=DO,y=Prediction_DO,color='Test Samples'),
             size=1.5,
             shape=8)+
  theme(axis.line = element_line(colour = "black"))+
  geom_point(data = Plotset[nrow(testPlot)+1:nrow(Plotset),],
             aes(x=DO,y=Prediction_DO,color='Train Samples'),
             shape=8) + theme(panel.grid.major = element_line(colour = NA),
                              panel.grid.minor = element_line(colour = NA),
                              legend.title = element_blank(),
                              panel.background = element_rect(fill = "white"),
                              legend.background = element_rect(colour = "black",linetype = "solid"),
                              legend.position = c(0.25,0.72))+
  geom_smooth(data=Plotset,
              aes(x=DO,y=Prediction_DO),
              method = 'lm',formula = y~x,se = FALSE,
              color='black',size=0.5)+
  theme(plot.title = element_text(hjust = 0.5))+coord_equal()+
  scale_x_continuous(limits = c(min(c(testPlot$DO,testPlot$Prediction_DO)), max(c(testPlot$DO,testPlot$Prediction_DO))))+
  scale_y_continuous(limits = c(min(c(testPlot$DO,testPlot$Prediction_DO)), max(c(testPlot$DO,testPlot$Prediction_DO))))+
  theme(axis.text.x = element_text(size = 14,family="serif"))+
  theme(axis.text.y = element_text(size = 14,family="serif"))+
  theme(legend.text=element_text(size=14,family="serif"))+
  theme(axis.title.x = element_text(size = 14,family="serif"))+
  theme(axis.title.y = element_text(size = 14,family="serif"))
Plot2

#设置默认路径，即后续图片保存的位置
setwd("E:\\output")
jpeg(filename =paste0("target预测.jpg"),width=1000,height=1000,res=250)#res 是指 PPI（Pixel Per Inch） ，即图像的采样率（在图像中，每英寸所包含的像素数目）
Plot2
dev.off()

对模型进行可解释性出图

1
2
3
4
5
6
7
8
9
10
#计算shap值
shap_xgboost = shapviz(DO_xg, X_pred = data_trainx)

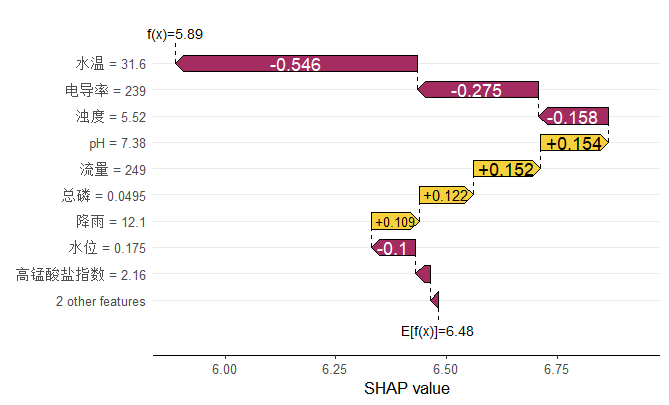

#绘制单个样本瀑布图
sv_waterfall(shap_xgboost,row_id = 10)#row_id指定第10个样本

mean(traindata$target)
mean(testdata$target)
mean(trainpred)
mean(testpred)

可以看到Ef(x)不为上面任何一个的均值，同时第十个样本中变量对结果影响从大到小分别为水温、电导率、浊度、pH、流量…

1
2

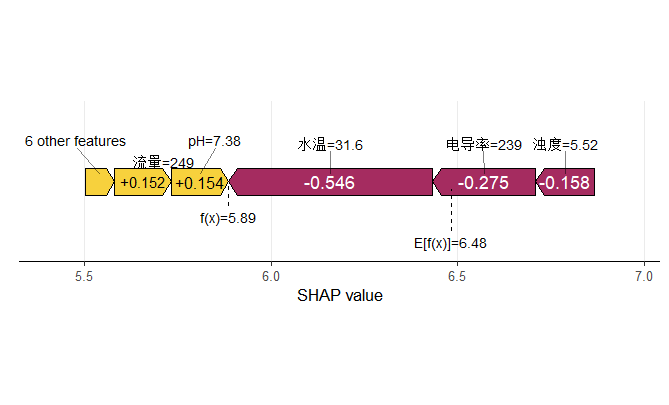

#单个样本力图
sv_force(shap_xgboost,row_id = 10)#row_id指定第10个样本

将瀑布图用一维表示

1
2
3
4

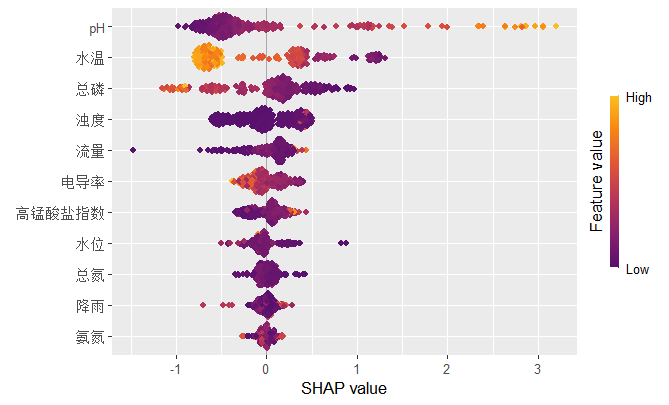

#绘制变量重要性蜂群图
sv_importance(shap_xgboost,kind = "beeswarm")
#去掉图片灰色背景
#sv_importance(shap_xgboost,kind = "beeswarm")+theme_bw()

所有样本中变量对结果影响从大到小分别为pH、水温、总磷、浊度、流量…，pH特征越大，结果越大（high颜色在数轴右方），水温特征越大，结果越小（high颜色在数轴左方）…

1
2

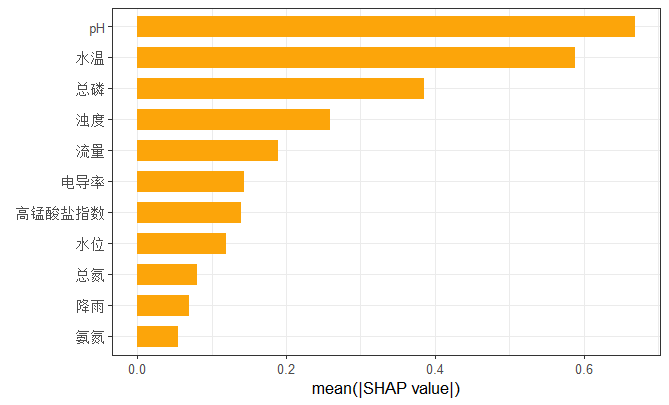

#变量重要性柱状图
sv_importance(shap_xgboost)+theme_bw()

1
2

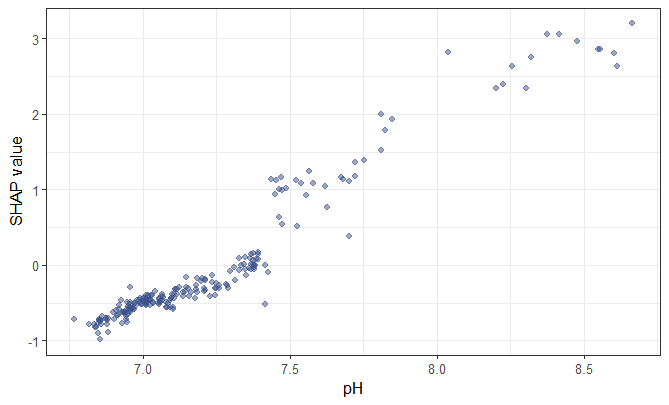

#单个变量依赖图
sv_dependence(shap_xgboost, "pH",alpha = 0.5,size = 1.5,color_var = NULL)+theme_bw()#alpha透明度

可以看到pH与SHAP值几乎呈线性关系

1
2

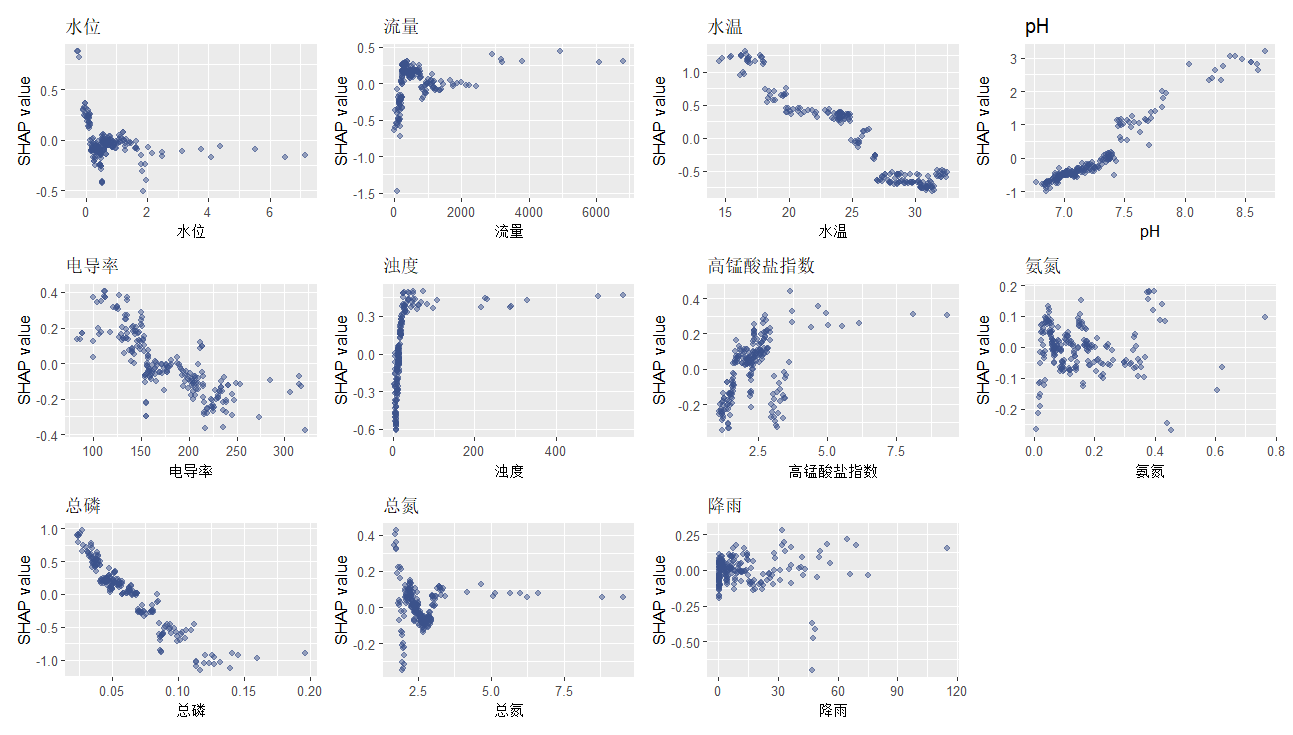

#多个变量偏相关依赖图
sv_dependence(shap_xgboost,v = c(colnames(traindata)[colnames(traindata) != 'target']),alpha = 0.5,size = 1.5,color_var = NULL)
